Unibrain Fireboard800-e V.3 1394b PCI express adapter

Unibrain Fireboard800-e V.3 1394b PCI express adapter

  • 所属分类:Unibrain
  • 浏览次数: 1409 次
  • 发布时间:2023-10-19 16:15:00
  • 资料下载:
  • 详细介绍

产品型号:Unibrain Fireboard800-e V.3 1394b PCI express adapter

主要参数:1394b;支持100/200/400/800 Mb/s的数据传输;

资料下载:暂无数据

产品详细说明:

产品概况:

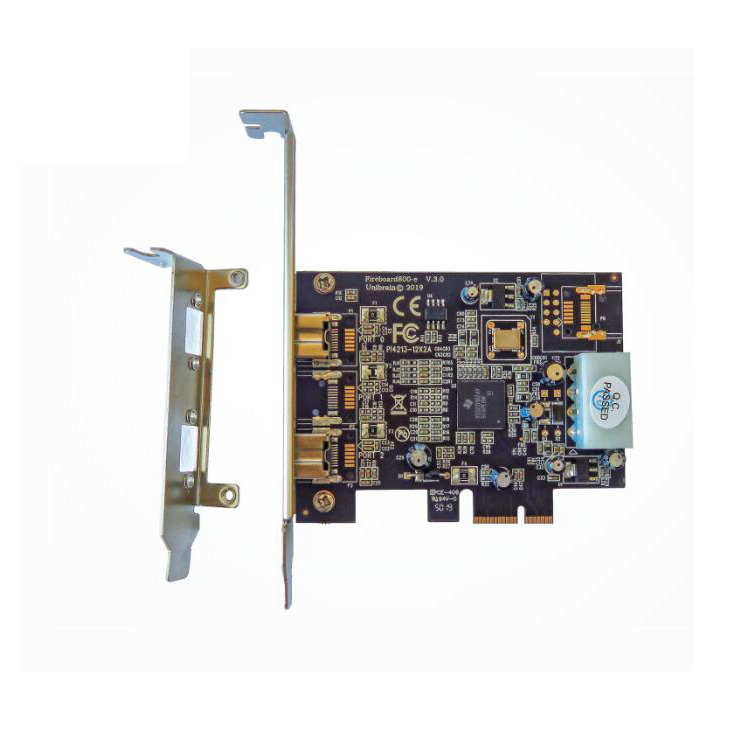

Unibrain Fireboard800-e™ V.3 next generation Firewire-800 PCI express adapter is based on the Texas Instruments XIO2213B integrated PCI-e to 1394b OHCI (open host controller/link-layer) controller.

The card features two external fully backward compatible, Bilingual 1394b, 9 pin ports with support of 100/200/400/800 Megabits per second data transfers.

操作系统:

Windows 7/8/10, 32/64 bit editions

Mac OS 10.4.x or later

Linux

  •

产品特点:

OHCI Compliant/Compatible with any FireWire device or peripheral.

PCI Burst transfers and 11 Kbyte FIFO to Tolerate Large Host Latency.

Hardware support for 4 DMA channels which permits the concurrent transmit/receive of up to 4 isochronous data streams.

RoHS/WEEE compliant.

Low profile compliant (regular and low profile brackets included), industrial screw lock cable support.
